Regulators
>
Specialty Pressure-Reducing
>

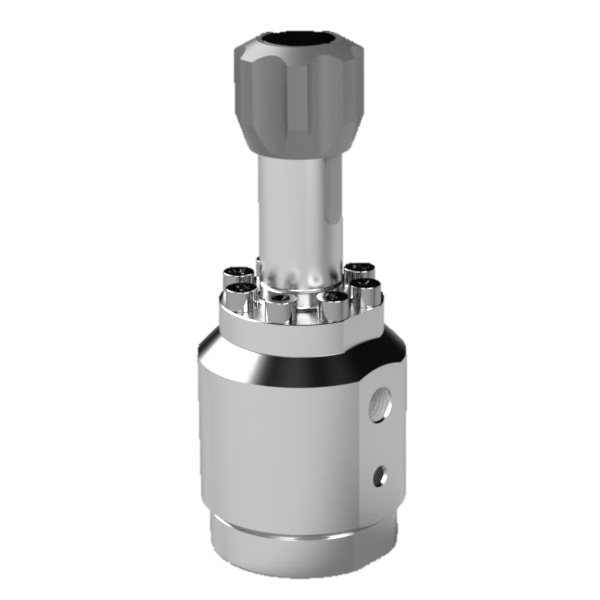

SFRS Series
> Configure Product
Configure Product SFRS Series
Close Window
Modify Configuration
Reset
Cancel
View Results
Item #
SFRS091YPK2A0TAB000
Item #
SFRS091YPK2A0TAB000
Regulator Type
High Pressure Service
Regulator Function
Pressure Reducing
Loading Mechanism
Spring Loaded
Size
9/16" Nominal Bore
Body Material
316 Stainless Steel
316L, SC-11 cleaned
Control Range
1,269 to 12,690 psi (87.5 to 875 bar)
Seat Material
PEEK seat 15225psi (1050 bar)
Connections
1/2" FK (8FK)
9/16 IPT
Port Configuration
No gauge ports
Seal Material
Low-Temp EPDM
Sensor Options
Non-venting (main reg)
Handle
Knob (dark blue)
Knob (green)
Knob (black)
Knob (orange)
Knob (red)
Knob (yellow)
Anti-tamper
Anti-tamper & Factory Set
Not applicable / no pilot
Additional Options
No Options
