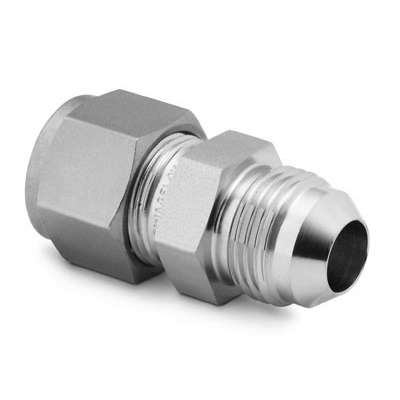

AN Union - Fractional
Straight: Connects Tubing to Tubing
Item # |
Material |
Tube OD x AN Tube Flare Size |
Positive Material Identification |
|---|---|---|---|
| NY-200-6-2AN-PMI | Material N/A Nylon | Tube OD x AN Tube Flare Size N/A 1/8 x 1/8 | Positive Material Identification N/A PMI |
| NY-200-6-4AN-PMI | Material N/A Nylon | Tube OD x AN Tube Flare Size N/A 1/8 x 1/4 | Positive Material Identification N/A PMI |
| NY-400-6-4AN-PMI | Material N/A Nylon | Tube OD x AN Tube Flare Size N/A 1/4 x 1/4 | Positive Material Identification N/A PMI |
| NY-500-6-5AN-PMI | Material N/A Nylon | Tube OD x AN Tube Flare Size N/A 5/16 x 5/16 | Positive Material Identification N/A PMI |
| NY-600-6-4AN-PMI | Material N/A Nylon | Tube OD x AN Tube Flare Size N/A 3/8 x 1/4 | Positive Material Identification N/A PMI |
| NY-600-6-6AN-PMI | Material N/A Nylon | Tube OD x AN Tube Flare Size N/A 3/8 x 3/8 | Positive Material Identification N/A PMI |
| NY-810-6-8AN-PMI | Material N/A Nylon | Tube OD x AN Tube Flare Size N/A 1/2 x 1/2 | Positive Material Identification N/A PMI |
| NY-1210-6-12AN-PMI | Material N/A Nylon | Tube OD x AN Tube Flare Size N/A 3/4 x 3/4 | Positive Material Identification N/A PMI |
| NY-1610-6-16AN-PMI | Material N/A Nylon | Tube OD x AN Tube Flare Size N/A 1 x 1 | Positive Material Identification N/A PMI |
| T-100-6-2AN-PMI | Material N/A PTFE | Tube OD x AN Tube Flare Size N/A 1/16 x 1/8 | Positive Material Identification N/A PMI |
| T-200-6-2AN-PMI | Material N/A PTFE | Tube OD x AN Tube Flare Size N/A 1/8 x 1/8 | Positive Material Identification N/A PMI |
| T-200-6-4AN-PMI | Material N/A PTFE | Tube OD x AN Tube Flare Size N/A 1/8 x 1/4 | Positive Material Identification N/A PMI |
| T-400-6-4AN-PMI | Material N/A PTFE | Tube OD x AN Tube Flare Size N/A 1/4 x 1/4 | Positive Material Identification N/A PMI |
| T-500-6-5AN-PMI | Material N/A PTFE | Tube OD x AN Tube Flare Size N/A 5/16 x 5/16 | Positive Material Identification N/A PMI |
| T-600-6-4AN-PMI | Material N/A PTFE | Tube OD x AN Tube Flare Size N/A 3/8 x 1/4 | Positive Material Identification N/A PMI |
| T-600-6-6AN-PMI | Material N/A PTFE | Tube OD x AN Tube Flare Size N/A 3/8 x 3/8 | Positive Material Identification N/A PMI |
| T-810-6-8AN-PMI | Material N/A PTFE | Tube OD x AN Tube Flare Size N/A 1/2 x 1/2 | Positive Material Identification N/A PMI |
| T-1210-6-12AN-PMI | Material N/A PTFE | Tube OD x AN Tube Flare Size N/A 3/4 x 3/4 | Positive Material Identification N/A PMI |
| T-1610-6-16AN-PMI | Material N/A PTFE | Tube OD x AN Tube Flare Size N/A 1 x 1 | Positive Material Identification N/A PMI |
| TI-100-6-2AN-PMI | Material N/A Titanium (grade 4) | Tube OD x AN Tube Flare Size N/A 1/16 x 1/8 | Positive Material Identification N/A PMI |
| TI-200-6-2AN-PMI | Material N/A Titanium (grade 4) | Tube OD x AN Tube Flare Size N/A 1/8 x 1/8 | Positive Material Identification N/A PMI |
| TI-200-6-4AN-PMI | Material N/A Titanium (grade 4) | Tube OD x AN Tube Flare Size N/A 1/8 x 1/4 | Positive Material Identification N/A PMI |
| TI-400-6-4AN-PMI | Material N/A Titanium (grade 4) | Tube OD x AN Tube Flare Size N/A 1/4 x 1/4 | Positive Material Identification N/A PMI |
| TI-500-6-5AN-PMI | Material N/A Titanium (grade 4) | Tube OD x AN Tube Flare Size N/A 5/16 x 5/16 | Positive Material Identification N/A PMI |
| TI-600-6-4AN-PMI | Material N/A Titanium (grade 4) | Tube OD x AN Tube Flare Size N/A 3/8 x 1/4 | Positive Material Identification N/A PMI |
